GSJ type belt feeder is the new environmentally friendly and energy-saving feeder developed by our company, especially suitable for the continuous and even feeding of bulk materials. Its structural feature is to change reciprocating movement mechanism to belt conveyor structure on the basis of K-type reciprocating feeder so that continuous feeding is achieved; meanwhile feeding movement changes from sliding friction to rolling friction so that the handling volume is greatly increased, and friction coefficient is greatly reduced to make power consumption significantly reduce. Belt conveyor also aviods the defects of elastic elongation of the conveyor belt of shell belt feeder, permanent elongation, difficult to operate simultaneously between shell belt and conveyor belt because it is difficult to maintain consistent with the elongation of shell belt, or either of shell belt or conveyor belt overtightening.

Product characteristics:   1. Large production capacity, impact structure, light weight, low power, facilitating to underground transport and installation, reducing the workload of roadway. 2. Larger adjustable range of feeding amount, variable speed for adjusting production capacity can be achieved. 3. Little energy consumption, low noise, smooth operation, even and stable feeding and easy to adjust. 4. Reasonable design, simple and reliable structure, easy to dismantle, install, maintain and deliver. 5. Capable of bearing greater bin pressure, effectively replacing vibrating feeder and slide damper and other feeding equipment.

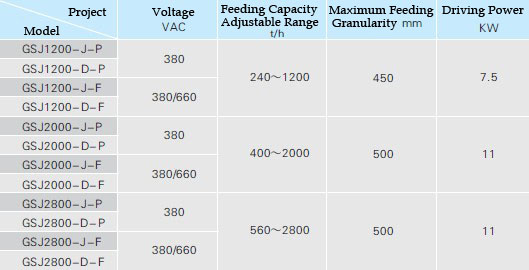

Basic parameters:





Remark:

       1. The feeding capacity in the table is given by taking coal as standard material (bulk density is 0.9t/m).

       2. Special order can be made if beyond the range listed in this table.
