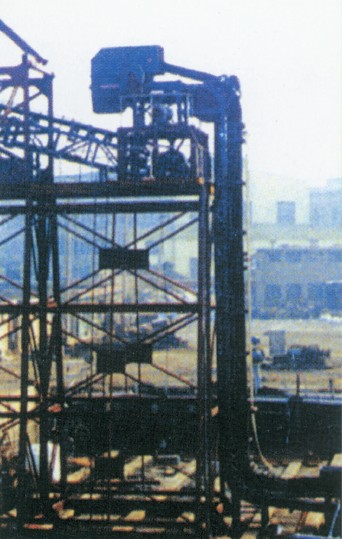

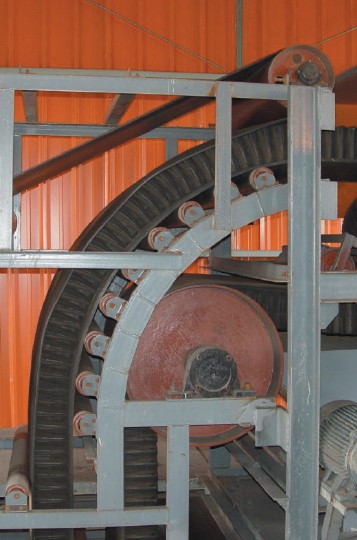

Belt conveyor with entrained sidewalls is the newly developed hoisting equipments at wide angle designed on basis of the belt conveyor with corrugate sidewalls, it has the same advantages as belt conveyor with corrugate sidewalls, meeting transportation requirements of wide angle and large capacity: it could solve the issue that material leak during transporting powder material at wide angle, it also could save energy, save cost, cover little space and protect environment.

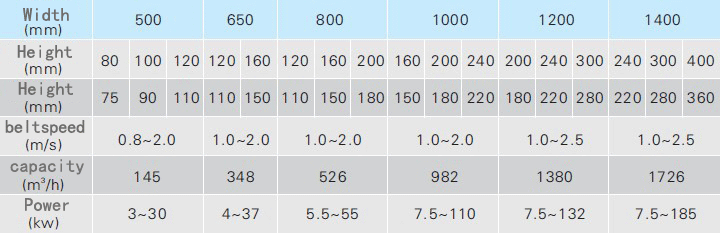

 Main technical parameters：



      Note: transportation capacity of HDJ belt conveyor with entrained sidewalls has no concern with angle, the most economized angle is 90 degree. Favorable belt speed is 1.0m/s~1.6m/s.
