DTII, TD75 and QD80 light fixed belt conveyor is exclusively manufactured in our company which is widely in metallurgy, mining, coal, ports, power plants, building materials, grain chemical industry, light industry and petroleum industry. It could transport on its own or fit with several sets or with other types of conveyors in the form of horizontal or inclined transportation system depending on process requirements.

      Temperature of working environment for the fixed belt conveyor is within -25~+40°C. Take different protective measures for belt conveyors preventing from heat, freezing, corrosion, water, explosion and combustion used in special environments.

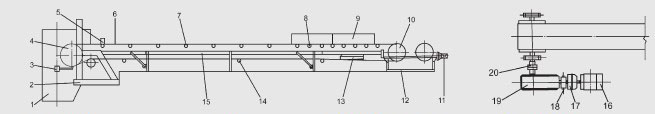

General structure of DTII belt conveyor:





Note:

1=Funnel on front section     2= 机架 Machine frame     3= 头部清扫器 Cleaner on front section     4= 传动滚筒 Drive roller     5= 安全保护装置 Safety protective equipment     6= 传送带  Conveyor     7= 承载托辊 Supporting roller     8= 缓冲托辊 Buffering roller     9= 导料槽 hopper     10= 改向滚筒 orientation roller

11= 螺旋拉紧装置 spiral locking equipment   12= 尾架 End frame   13= 空段清扫器 Cleaner on open section   14= 回程托辊 Stroke roller   15= 中间架 Middle frame   16= 电动机 Motor   17= 液力耦合器 Hydraulic coupler   18= 制动器 Brake   19= 减速器 Reduction gear   20=  联轴器 Coupling




  Main technical parameters:

          Belt width: B 500、650、800、1000、1200、1400、1600、1800、2000、2200、2400MM
          Belt speed: V 0.8、1.0、1.25、1.6、2.0、2.5、3.15、4.0、5.0、6.5M/S

          TD75 Universal Fixed Belt Conveyor
          Belt wide: B 500、650、800、1000、1200、1400MM
          Belt speed: V 0.8、1.0、1.25、1.6、2.0、2.5、3.15、4.0M/S

          DX Steel cable core belt conveyor
          Belt width: B  800、1000、1200、1400、1600、1800、2000MM
          Belt speed: V 2.0、2.5、3.15、4.0、5.0M/S

          QD80 Light fixed belt conveyor
          Belt width: B 300、400、500、650、800、1000、1200MM
          Belt speed: V 2.5、0.5、0.8、1.0、1.25、1.6、2.0、2.5M/S
