Revolving material distribution machine

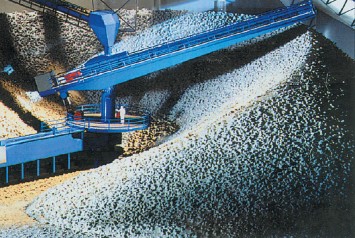

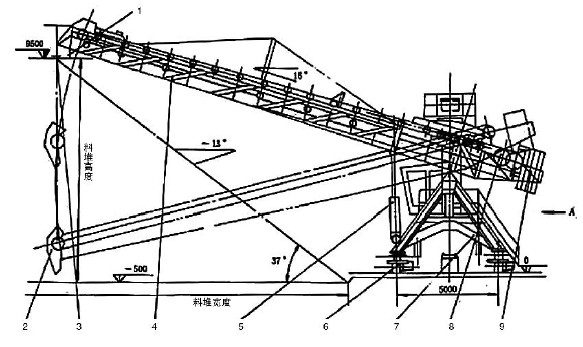

        HZ revolving belt conveyor belongs to a kind of energy-saving stacker in the field of loading and unloading mechanical equipment, and is a new kind of continuous conveying equipment with rotating body fixed on the beam of turntable, ladder fixed in the front of beam of turntable, and cantilever belt conveyor connected with tail vehicle assembly; one end of cantilever is connected with the upper end of stand column, and the other end of cantilever is hanged and supported by tie cord to one end of variable range arm on the upper of stand column. The counterweight end of variable range arm is connected by steel wire rope and coil rope motor, the movable counter weight is fixed to the variable range arm, and the belt conveyor is installed inside the cantilever. It can operate jointly with taker. The stacking and taking do not conflict, and the working efficiency is doubled. In addition, it has the characteristics of simple structure, electricity energy saving, low maintenance, small occupation area, light weight, flexible and reliable operation and civil engineering cost saving.

       It has developed rapidlly in recent years, and is widely used in coal, chemical industry, electric power, building materials, metallurgy, light industry, food, port and other industries.

Product characteristics:

The working environmental temperature of HZ revolving belt conveyor is -3540℃ (the temperature for

heat resistant conveyor belt can be used. When there are acidic, alkaline, oily substances and organic solution

transmission of materials is not more than 80). When the temperature for transmission of materials exceeds 80,

and other materials during the transmission, oil resistant and acid and alkali resistant rubber belt are required for

use.

In addition to the advantages of common belt conveyor, HZ revolving belt conveyor also can rotate arbitrarily

within 360°. It is applicable to warehouse and outdoor stockpiling materials and other operations. It can

deliver bulk materials and pieces of items, especially suitable for such bulk materials of strong viscosity and

high water content as gypsum, with the advantages of non-sticking of materials, corrosion resistance and low

power consumption, etc.

HZ revolving belt conveyor has the advantages of advanced technical parameters, complete specifications,

simple structure, easy maintenance, low cost, strong applicability, etc. According to the requirements of

conveying technology, it can be of single transmission, and can constitute conveying system along with other

conveyors.
